QxCloudConnector™ 100
Compact desktop gateway for full-cloud deployments, supporting up to 16 cameras and 32 total resources with 500GB of local storage.
Product specifications.
Model
QxCloudConnector™ 100
Capacity
Up to 16 cameras and 32 total resources
Processor
Intel Twin Lake N150
Memory
16GB
Networking
Dual GigE ports for LAN and WAN networks
Local storage
500GB; no customizations permitted
Power
120–240 VAC / 50–60 Hz
Operating environment
-10°C to 45°C; 30%–85% humidity
Dimensions
126 mm W × 126 mm D × 39 mm H
Weight
4.1 lb (1.9 kg)
Functional ports
Front I/O switch; rear LAN, WAN, and power ports. All non-labeled ports are unused.
Part number
QXCC100-500GB
Warranty
One year
Competitive advantages.
Supports up to 16 cameras and 32 total resources
Compact 126 × 126 × 39 mm desktop form factor for limited-space installations
Dual GigE LAN and WAN network ports
500GB local storage configuration
Intel Twin Lake N150 processor with 16GB memory
Designed for a full QxControl cloud experience
Product downloads.
QxCloudConnector 100 Datasheet

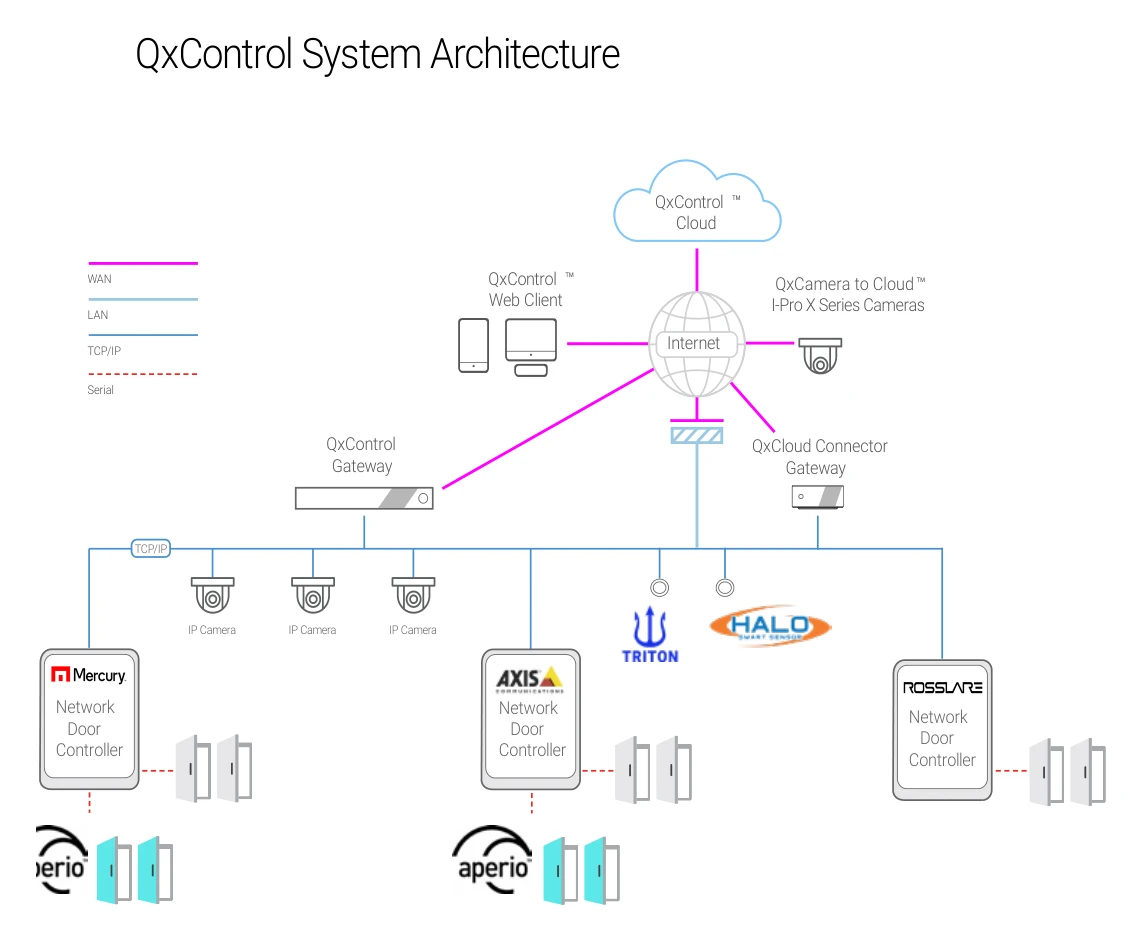

View or download PDFQxControl system architecture.
QxCloudConnector provides a compact gateway path into QxControl Cloud while the local network connects supported cameras, network door controllers, and compatible environmental devices.
Confirm the right configuration.
Talk with QXR about compatibility, architecture, availability, and the supporting products required for your deployment.
